The Ghost Ship, Lyubov Orlova, disappeared on 4 FEB, 2013 while being towed off the coast of Canada. After 11 years it has not been seen again but it could still be out there adrift, somewhere. The 1,500-tonne 110-passenger Russian vessel is drifting somewhere in the Atlantic Ocean. Missing, Richard Fisher, New Scientist, 5 Oct 2013
The Lydbov ORLOVA in action.

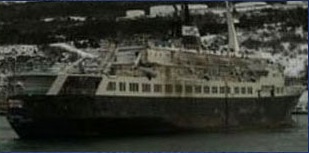

The Lydbov ORLOVA as a Ghost Ship.
Despite 2 separate SOS broadcasts from Orlova life rafts in March,
it has not been found. These SOS signals are the last two ‘sightings’ shown on the map (below),
but an aerial search did not find the GHOST SHIP.

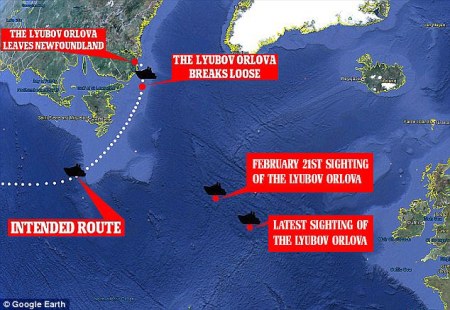

Map from quofataferant.com
The Problem:
Ghost ships, pirates and illegal fishing vessels do not want to be found. They do not give off radio signals or identify themselves in any way to other vessels. Ghosts ships, in particular, are dangerous because other ships can crash into them at night. Seven ghosts ships have been found since 2000 including an 80m tanker off the coast of Australia.
GPS is not always accurate. (Scroll down to see error chart: 10. Design Cool Techno Stuff )
Ships must use radar to get instant readings of other vessels in the shipping lane. Can you find a GHOST SHIP Mathspiggies?
Radar BASICS:
Radar, short for “Radio Detection And Ranging”, sends out short pulse microwave beams that either focus on a narrow area (eg. speed cameras) or scan an entire semi-circular dome (eg War ships). Radar measures the angle and time taken of the reflected echo. This gives the location and altitude (distance and angle) of the airplane or ship.
It is used to detect the location, speed and direction of weather fronts, cars, airplanes, ships and more.
The weather radar beam is typically reaches about 322km or 200 miles. Here is the current radar map produced by the Bureau of Meteorology at the Terry Hills unit north of Sydney (pictured below)

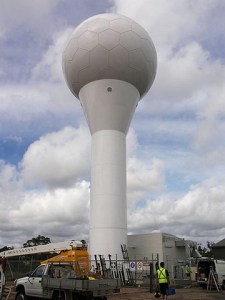

Bureau of Met RADAR
with protective dome
The Doppler Effect is used to calculate the speed of the ship. Every kid knows the Doppler Effect. eg. sound of a racing car turning a corner. High pitch approaching, low pitch leaving as sound waves are shorted on approach and lengthened on departure. Today Doppler Radar is automated. This was not possible before computers. eg. World War 2
The Maths:
You are going to do some World War II Radar Operator maths.
To do RADAR MATHS you must THINK HARD and picture what is happening in your mind. All you see on the screen at any one time is YOUR SHIP’S POSITION (in the middle) and a BLIP showing the GHOST SHIP’S POSTION as the microwave beam scans the ocean.
You mark the GHOST SHIP POSITION on screen and then do these calculations. But remember this …every time you see a blip you have moved too.
Now we’re going to look at the sort of calculation needed if ships we’re heading on a collision course. You will find all the GHOST SHIP DATA under the RADAR screen (below).
