The document presents the Apache Spark - Apache HBase connector (SHC), highlighting its efficient integration with Spark for enhanced access to HBase through Spark SQL. It details the architecture, implementation, and high-performance features such as partition pruning and data locality. Additionally, it provides usage instructions and examples, along with references for further information.
Apache Spark—Apache HBase Connector: Feature Rich and Efficient Access to HBase through Spark SQL with Weiqing Yang
- 1. 1 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Apache Spark – Apache HBase Connector Feature Rich and Efficient Access to HBase through Spark SQL Weiqing Yang Mingjie Tang October, 2017
- 2. 2 © Hortonworks Inc. 2011 – 2017. All Rights Reserved About Authors à Weiqing Yang • Contribute to Apache Spark, Apache Hadoop, Apache HBase, Apache Ambari • Software Engineer at Hortonworks à Mingjie Tang • SparkSQL, Spark Mllib, Spark Streaming, Data Mining, Machine Learning • Software Engineer at Hortonworks à … All Other SHC Contributors
- 3. 3 © Hortonworks Inc. 2011 – 2016. All Rights Reserved Agenda Motivation Overview Architecture & Implementation Usage & Demo
- 4. 4 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Motivation à Limited Spark Support in HBase Upstream – RDD level – But Spark Is Moving to DataFrame/Dataset à Existing Connectors in DataFrame Level – Complicated Design • Embedding Optimization Plan inside Catalyst Engine • Stability Impact with Coprocessor • Serialized RDD Lineage to HBase – Heavy Maintenance Overhead
- 5. 5 © Hortonworks Inc. 2011 – 2016. All Rights Reserved Overview
- 6. 6 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Apache Spark– Apache HBase Connector (SHC) à Combine Spark and HBase – Spark Catalyst Engine for Query Plan and Optimization – HBase as Fast Access KV Store – Implement Standard External Data Source with Build-in Filter, Maintain Easily à Full Fledged DataFrameSupport – Spark SQL – Integrated Language Query à High Performance – Partition Pruning, Data Locality, Column Pruning, Predicate Pushdown – Use Spark UnhandledFilters API – Cache Spark HBase Connections
- 7. 7 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Data Coder & Data Schema à Support Different Data Coders – PrimitiveType: Native Support Java Primitive Types – Avro: Native Support Avro Encoding/Decoding – Phoenix: Phoenix Encoding/Decoding – Plug-In Data Coder – Can Run on the Top of Existing HBase Tables à Support Composite Key – def cat = s"""{ |"table":{"namespace":"default", "name":"shcExampleTable", "tableCoder":”Phoenix"}, |"rowkey":"key1:key2", |"columns":{ |"col00":{"cf":"rowkey", "col":"key1", "type":"string”}, |"col01":{"cf":"rowkey", "col":"key2", "type":"int"}, … ...
- 8. 8 © Hortonworks Inc. 2011 – 2016. All Rights Reserved Architecture & Implementation
- 9. 9 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Architecture …... Driver Executor Executor Executor Region Server Region Server Region Server…... Spark HBase Picture 1. SHC architecture Host 1
- 10. 10 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Architecture …... Driver Executor Executor Executor Region Server Region Server Region Server…... Picture 1. SHC architecture Task Query Partition Filters, Required Columns RS start/end point sqlContext.sql("select count(col1) from table1 where key < 'row050'") PP P Scans BulkGets
- 11. 11 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Implementation …... Driver Executor Executor Executor Region Server Region Server Region Server…... Picture 1. SHC architecture Task Query Partition Filters, Required ColumnsPartition Pruning: Task Only Performed in Region Server Holding Requested Data PP P Scans BulkGets Filters -> Multiple Scan Ranges ∩ (Start point, end point) RS start/end point
- 12. 12 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Implementation …... Driver Executor Executor Executor Region Server Region Server Region Server…... Picture 1. SHC architecture Task Query Partition Filters, Required Columns RS start/end point Data Locality: Move Computation to Data. PP P Scans BulkGets RDD Partition has preferred location: getPreferredLocations(partition) { return RS.hostName}
- 13. 13 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Implementation …... Driver Executor Executor Executor Region Server Region Server Region Server…... Picture 1. SHC architecture Task Query Partition Filters, Required Columns RS start/end point Column Pruning: Required Column Predicate Pushdown: HBase built-in Filters PP P Filters, Required Columns Filters, Required Columns Scans BulkGets Filters, Required Columns
- 14. 14 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Implementation …... Driver Executor Executor Executor Region Server Region Server Region Server…... Picture 1. SHC architecture Task Query Partition Filters, Required Columns RS start/end point Scan and BulkGets: Grouped by region server. PP P Scans BulkGets WHERE column > x and column < y for scan and WHERE column = x for get.

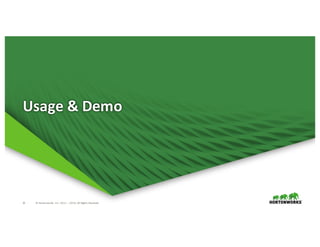

- 15. 15 © Hortonworks Inc. 2011 – 2016. All Rights Reserved Usage & Demo
- 16. 16 © Hortonworks Inc. 2011 – 2017. All Rights Reserved How to Use SHC? à Github – https://github.com/hortonworks-spark/shc à SHC Examples – https://github.com/hortonworks-spark/shc/tree/master/examples à Apache HBase Jira – https://issues.apache.org/jira/browse/HBASE-14789

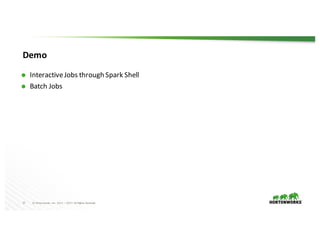

- 17. 17 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Demo à Interactive Jobs through Spark Shell à Batch Jobs
- 18. 18 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Acknowledgement à HBase Community & Spark Community à All SHC Contributors, Zhan Zhang
- 19. 19 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Reference à Hortonworks Public Repo – http://repo.hortonworks.com/content/repositories/releases/com/hortonworks/ à Apache Spark – http://spark.apache.org/ à Apache HBase – https://hbase.apache.org/
- 20. 20 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Thanks Q & A Emails: [email protected]
- 21. 21 © Hortonworks Inc. 2011 – 2017. All Rights Reserved BACKUP
- 22. 22 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Kerberos Cluster à Kerberos Ticket – kinit -kt foo.keytab foouser or Principle/Keytab à Long Running Service – --principal, --keytab à Multiple Secure HBase Clusters – Spark only Supports Single Secure HBase Cluster – Use SHC Credential Manager – Refer LRJobAccessing2Clusters Example in github
- 23. 23 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Usage Define the catalog for the schema mapping:
- 24. 24 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Usage à Prepare the data and populate the HBase table val data = (0 to 255).map { i => HBaseRecord(i, “extra”)} sc.parallelize(data).toDF.write.options( Map(HBaseTableCatalog.tableCatalog -> catalog, HBaseTableCatalog.newTable-> “5”)) .format(“org.apache.spark.sql.execution.datasources.hbase”) .save()
- 25. 25 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Usage à Load the DataFrame def withCatalog(cat: String): DataFrame = { sqlContext .read .options(Map(HBaseTableCatalog.tableCatalog->cat)) .format(“org.apache.spark.sql.execution.datasources.hbase”) .load() } val df = withCatalog(catalog)
- 26. 26 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Usage à Query Language integrated query: val s = df.filter((($"col0ʺ <= “çrow050ʺ && $”col0” > “row040”) || $”col0ʺ === “row005” && ($”col4ʺ === 1 || $”col4ʺ === 42)) .select(“col0”, “col1”, “col4”) SQL: val s = df.filter((($”col0ʺ <= “row050ʺ && $”col0” > “row040”) df.registerTempTable(“table”) sqlContext.sql(“select count(col1) from table”).show
- 27. 27 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Usage à Work with different data sources // Part 1: write data into Hive table and read data from it val df1 = sql("SELECT * FROM shcHiveTable") // Part 2: read data from Hbase table val df2 = withCatalog(cat) // Part 3: join the two dataframes val s1 = df1.filter($"key" <= "40").select("key", "col1") val s2 = df2.filter($"key" <= "20" && $"key" >= "1").select("key", "col2") val result = s1.join(s2, Seq("key")) result.show()
