Image Similarity Detection at Scale Using LSH and Tensorflow with Andrey Gusev

Image Similarity Detection
Andrey Gusev June 6, 2018
Using LSH and Tensorflow

Help you discover and do
what you love.

200m+People on
Pinterest
each month
100b+Pins
2b+Boards
10b+Recommendations/Day

1
2
3
4
5
Agenda Neardup, clustering and LSH
Candidate generation
Deep dive
Candidate selection
TF on Spark

Not An Equivalence Class
Formulation
For each image find a canonical image which represents an equivalence class.
Problem
Neardup is not an equivalence relation because neardup relation is not a
transitive relation.
It means we can not find a perfect partition such that all images within a
cluster are closer to each other than to the other clusters.

Incremental approximate K-Cut
Incrementally:
1. Generate candidates via batch LSH search
2. Select candidates via a TF model
3. Take a transitive closure over selected candidates
4. Pass over clusters and greedily select sub-clusters (K-Cut).

Embeddings and LSH
- Visual Embeddings are high-dimensional vector representations of
entities (in our case images) which capture semantic similarity.
- Produced via Neural Networks like VGG16, Inception, etc.
- Locality-sensitive hashing or LSH is a modern technique used to reduce
dimensionality of high-dimensional data while preserving pairwise
distances between individual points.

LSH: Locality Sensitive Hashing
- Pick random projection vectors (black)
- For each embeddings vector determine
on which side of the hyperplane the
embeddings vector lands
- On the same side: set bit to 1
- On different side: set bit to 0
Result 1: <1 1 0>
Result 2: <1 0 1>
1
1
0
1
0
1

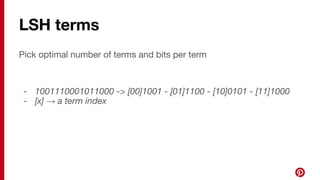

LSH terms
Pick optimal number of terms and bits per term
- 1001110001011000 -> [00]1001 - [01]1100 - [10]0101 - [11]1000
- [x] → a term index

Neardup Candidate Generation
- Input Data:
RDD[(ImgId, List[LSHTerm])] // billions
- Goal:
RDD[(ImgId, TopK[(ImgId, Overlap))]
Nearest Neighbor (KNN) problem formulation

Neardup Candidate Generation
Given a set of documents each described by LSH terms, example:
A → (1,2,3)
B → (1,3,10)
C → (2,10)
And more generally:
Di
→ [tj
]
Where each Di
is a document and [tj
] is a list of LSH terms (assume each is a 4 byte integer)
Results:
A → (B,2), (C,1)
B → (A,2), (C,1)
C → (A,1), (B,1)

Spark Candidate Generation
1. Input RDD[(ImgId, List[LSHTerm])] ← both index and query sets
2. flatMap, groupBy input into RDD[(LSHTerm, PostingList)] ← an inverted index
3. flatMap, groupBy into RDD[(LSHTerm, PostingList)] ← a query list
4. Join (2) and (3), flatMap over queries posting list, and groupBy query ImgId;
RDD[(ImgId, List[PostingList])] ← search results by query.
5. Merge List[List[ImgId]] into TopK(ImgId, Overlap) counting number of times each ImgId is
seen → RDD[ImgId, TopK[(ImgId, Overlap)].
* PostingList = List[ImgId]

def mapDocToInt(termIndexRaw: RDD[(String, List[TermId])]): RDD[(String, DocId)] = {
// ensure that mapping between string and id is stable by sorting
// this allows attempts to re-use partial stage completions
termIndexRaw.keys.distinct().sortBy(x => x).zipWithIndex()
}
val stringArray = (for (ind <- 0 to 1000) yield randomString(32)).toArray
val intArray = (for (ind <- 0 to 1000) yield ind).toArray
* https://www.javamex.com/classmexer/

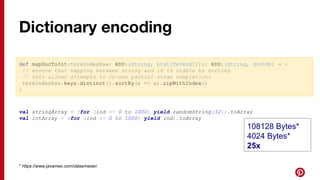

Dictionary encoding
108128 Bytes*
4024 Bytes*
25x

Variable Byte Encoding
- One bit of each byte is a continuation bit; overhead
- int → byte (best case)
- 32 char string up to 25x4 = 100x memory reduction
https://nlp.stanford.edu/IR-book/html/htmledition/variable-byte-codes-1.html

Inverted Index Partitioning
Inverted index is skewed
/**
* Build partitioned inverted index by taking module of docId into partition.
*/
def buildPartitionedInvertedIndex(flatTermIndexAndFreq: RDD[(TermId, (DocId, TermFreq))]):
RDD[((TermId, TermPartition), Iterable[DocId])] = {
flatTermIndexAndFreq.map { case (termId, (docId, _)) =>
// partition documents within the same term to improve balance
// and reduce the posting list length
((termId, (Math.abs(docId) % TERM_PARTITIONING).toByte), docId)
}.groupByKey()
}

Packing
(Int, Byte) => Long
Before:
Unsorted: 128.77 MB in 549ms
Sort+Limit: 4.41 KB in 7511ms
After:
Unsorted: 38.83 MB in 219ms
Sort+Limit: 4.41 KB in 467ms
def packDocIdAndByteIntoLong(docId: DocId, docFreq: DocFreq): Long = {
(docFreq.toLong << 32) | (docId & 0xffffffffL)
}
def unpackDocIdAndByteFromLong(packed: Long): (DocId, DocFreq) = {
(packed.toInt, (packed >> 32).toByte)
}

Slicing
Split query set into slices to reduce spill and size for
“widest” portion of the computation. Union at the end.

Additional Optimizations
- Cost based optimizer - significant improvements to runtime can be realized by
analyzing input data sets and setting performance parameters automatically.
- Counting - jaccard overlap counting is done via low level, high performance collections.
- Off heaping serialization when possible (spark.kryo.unsafe).

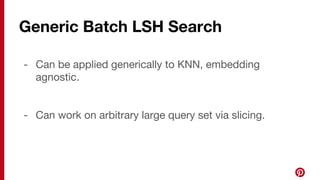

Generic Batch LSH Search
- Can be applied generically to KNN, embedding
agnostic.
- Can work on arbitrary large query set via slicing.

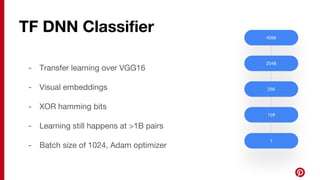

TF DNN Classifier
- Transfer learning over VGG16
- Visual embeddings
- XOR hamming bits
- Learning still happens at >1B pairs
- Batch size of 1024, Adam optimizer
4096
2048
256
128
1

Vectorization: mapPartitions + grouped
- During training and inference vectorization reduces overhead.
- Spark mapPartitions + grouped allows for large batches and controlling
the size. Works well for inference.
- 2ms/prediction on c3.8xl CPUs with network of 10MM parameters .
input.mapPartitions { partition: Iterator[(ImgInfo, ImgInfo)] =>
// break down large partitions into groups and score per group
partition.grouped(BATCH_SIZE).flatMap { group: Seq[(ImgInfo, ImgInfo)] =>
// create tensors and score as features: Array[Array[Float]] --> Tensor.create(features)
}
}

One TF Session per JVM
- Reduce model loading overhead, load once per JVM; thread-safe.
object TensorflowModel {
lazy val model: Session = {
SavedModelBundle.load(...).session()
}
}

Summary
- Candidate Generation uses Batch LSH Search over terms from visual
embeddings.
- Batch LSH scales to billions of objects in the index and is embedding
agnostic.
- Candidate Selection uses a TF classifier over raw visual embeddings.
- Two-pass transitive closure to cluster results.
